Quantum 26000 Security Gateway Datasheet

QUANTUM 26000 SECURITY GATEWAY

Check Point Quantum 26000 Next Generation Firewalls enables enterprises to deploy the industry’s leading threat prevention capabilities at all points of their infrastructure, scaling security almost infinitely according to their changing business needs. It also dramatically accelerates the efficiency of their security operations. This enables enterprises to prevent and block even the most advanced attacks, before they can disrupt business.

Always Protected
Against Gen V

Highest caliber prevention
with unified security

Security at
Hyperscale

On-demand expansion
with hyperscalability

Efficient
Operations

Cut operation management
time by up to 80%

PERFORMANCE HIGHLIGHTS

Performance measured with enterprise testing conditions. Additional performance details on page 3.
1: Includes Firewall, Application Control, and IPS.
2: Includes Firewall, Application Control, URL Filtering, IPS, Antivirus, Anti-Bot and SandBlast Zero-Day Protection

SPOTLIGHT

Prevent Known and Zero-day Threats

Check Point SandBlast Network is an evasion-resistant sandbox that provides zero-day protection from advanced and unknown threats. SandBlast Threat Extraction (CDR) ensures quick delivery of safe email and web content to users.

All-inclusive Security Solutions

Check Point 26000 security gateways include all security technologies including the SandBlast (sandboxing) software package for one year. Purchase a renewal for NGFW, NGTP or SandBlast (SNBT) for subsequent years as you like.

High Performance Options

Purchase the affordable Plus package and get a base system plus eight 1 Gb ports, twelve 10Gb ports, transceivers, 2x 480 GB SSD drives, Lights-out Management and 96 GB of memory for high connection capacity.

100, 40 and 25 GbE Connectivity

If you’re ready to move from 10 to 25, 40 or 100 GbE, so is the 26000 Next Generation Security Gateway. The 26000 Security Gateway lets you connect your 10 GbE server uplinks to your core network.

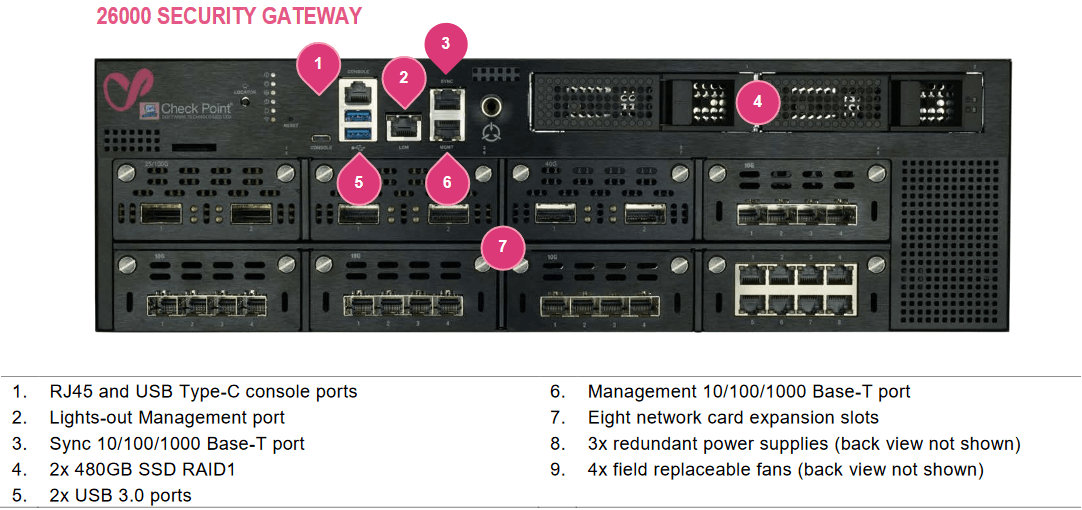

DATA CENTER GRADE PLATFORM

SPECIFICATIONS

Performance

Enterprise Test Conditions

Threat Prevention¹ (Gbps)

NGFW² (Gbps)

40.5

IPS (Gbps)

Firewall (Gbps)

106.2

RFC 3511, 2544, 2647, 1242 PERFORMANCE (LAB)

Firewall 1518B UDP (Gbps)

316.5

VPN AES-128 (Gbps)

40.1

Connections/sec

550,000

Concurrent connections³

10/20/32M

1: Includes Firewall, Application Control, URL Filtering, IPS, Antivirus, Anti-Bot and SandBlast Zero-Day Protection. 2: Includes Firewall, Application Control and IPS. 3: Performance measured with default/Plus/maximum memory.

Additional Features

Highlights

2x CPUs, 36 physical cores, 72 virtual cores (total)
1x 1TB HDD or 480GB SSD, (2x SSD in Plus)
3x AC power supplies (DC option)
48, 96 and 128 GB memory options
Lights-Out-Management card (optional in Base package)
Virtual Systems (base/PLUS/max mem): 125/250/250

Network Expansion Slot Options (4 of 8 slots open)

8x 10/100/1000Base-T RJ45 port card, up to 66 ports
4x 1000Base-F SFP port card, up to 32 ports
4x 10GBase-F SFP+ port card, up to 32 ports
2x 40G QSFP+ port card, up to 16 ports
2x 100/25G QSFP28 port card, up to 16 ports

Content Security

First Time Prevention Capabilities

CPU-level, OS-level and static file analysis
File disarm and reconstruction via Threat Extraction
Average emulation time for unknown files that require full sandbox
Maximal file size for Emulation is 100 MB
Emulation OS Support: Windows XP, 7, 8.1, 10

Applications

Use 8,000+ pre-defined or customize your own applications
Accept, prevent, schedule, and apply traffic-shaping

Data Loss Prevention

Classify 700+ pre-defined data types
End user and data owner incident handling

Dynamic User-based Policy

Integrates with Microsoft AD, LDAP, RADIUS, Cisco pxGrid, Terminal Servers and with 3rd parties via a Web API
Enforce consistent policy for local and remote users on Windows, macOS, Linux, Android and Apple iOS platforms

Network

Network Connectivity

Total physical and virtual (VLAN) interfaces per appliance: 1024/4096 (single gateway/with virtual systems)
802.3ad passive and active link aggregation
Layer 2 (transparent) and Layer 3 (routing) mode

High Availability

Active/Active L2, Active/Passive L2 and L3
Session failover for routing change, device and link failure
ClusterXL or VRRP

IPv6

NAT66, NAT64, NAT46
CoreXL, SecureXL, HA with VRRPv3

Unicast and Multicast Routing (see SK98226)

OSPFv2 and v3, BGP, RIP
Static routes, Multicast routes
Policy-based routing
PIM-SM, PIM-SSM, PIM-DM, IGMP v2, and v3

Physical

Power Requirements

Single Power Supply rating AC: 850W, DC: 1300W
Power input: 100 to 240V (47-53Hz), 40~-72VDC
Power consumption avg/max1: AC359/443W
Maximum thermal output AC1: 1509 BTU/hr.

1. base configuration, up to 1200W/4094 BTU/hr. with max config

Dimensions

Enclosure: 3RU
Dimensions (WxDxH): 17.4 x 24 x 5.2 in. (442 x 610 x 132mm)
Weight: 46.3 lbs. (21 kg)

Environmental Conditions

Operating: 0° to 40°C, humidity 5% to 95%
Storage: –20° to 70°C, humidity 5% to 95% at 60°C

Certifications

Safety: UL, CB, CE, TUV GS
Emissions: FCC, CE, VCCI, RCM/C-Tick
Environmental: RoHS, WEEE, REACH¹, ISO14001¹

1: factory certificate
