Quantum 6200 Security Gateway Datasheet

QUANTUM 6200 SECURITY GATEWAY

Check Point Quantum 6200 Next Generation Firewalls enables enterprises to deploy the industry’s leading threat prevention capabilities at all points of their infrastructure, scaling security almost infinitely according totheir changing business needs. It also dramatically accelerates the efficiency of their security operations. This enables enterprises to prevent and block even the most advanced attacks, before they can disrupt business.

Always Protected
Against Gen V

Highest caliber prevention
with unified security

Security at
Hyperscale

On-demand expansion
with hyperscalability

Efficient
Operations

Cut operation management
time by up to 80%

PERFORMANCE HIGHLIGHTS

Gen II Security Firewall	Gen III Security NGFW¹	Gen V Security Threat Prevention + SandBlast²
9 Gbps	3.72 Gbps	1.8 Gbps

Performance measured with enterprise testing conditions. Additional performance details on page 3. 1: Includes Firewall, Application Control, and IPS. 2: Includes Firewall, Application Control, URL Filtering, IPS, Antivirus, Anti-Bot and SandBlast Zero-Day Protection

SPOTLIGHT

Prevent Known and Zero-day Threats

Check Point SandBlast Network is an evasion-resistant sandbox that provides zero-day protection from advanced and unknown threats. SandBlast Threat Extraction (CDR) ensures quick delivery of safe email and web content to users.

Prevent Known and Zero-day Threats

Check Point 6200 security gateways include all security technologies including the SandBlast (sandboxing) software package for one year. Purchase a renewal for NGFW, NGTP or SandBlast (SNBT) for subsequent years as you like.

High Performance Options

Purchase the affordable Plus package and get a base system plus 4x 1 GbE fiber ports with transceivers, 2x AC power supplies, Lights-out Management and 16 GB of memory for high connection capacity.

Remote Management and Monitoring

A Lights-Out-Management (LOM) card provides out-of-band management to remotely diagnose, start, restart and manage the appliance from a remote location.

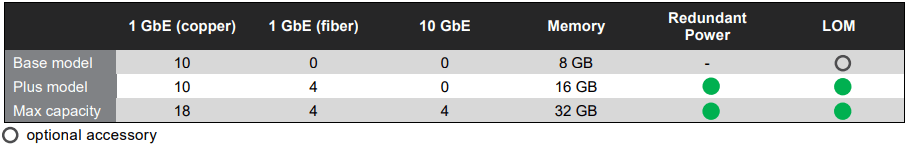

ENTERPRISE-GRADE PLATFORM

SPECIFICATIONS

Performance

Enterprise Test Conditions

Threat Prevention¹ (Gbps)

1.8

NGFW² (Gbps)

3.72

IPS (Gbps)

4.65

Firewall (Gbps)

RFC 3511, 2544, 2647, 1242 PERFORMANCE (LAB)

Firewall 1518B UDP (Gbps)

17.55

VPN AES-128 (Gbps)

2.57

Connections/sec

67,000

Concurrent connections³

2/4/8M

1: Includes Firewall, Application Control, URL Filtering, IPS, Antivirus, Anti-Bot and SandBlast Zero-Day Protection. 2: Includes Firewall, Application Control and IPS. 3: Performance measured with default/Plus/maximum memory.

Additional Features

Highlights

1x CPUs, 2 physical cores, 4 virtual cores
1x 240 GB SSD storage
1 AC power supply (2x in Plus)
8, 16 and 32 GB memory options
Lights-Out-Management (included in Plus)
Virtual Systems (Base/Plus/max mem): 10/20/20

Network Expansion Slot Options (1 of 1 slots open)

8x 10/100/1000Base-T RJ45 port card, up to 18 ports
4x 1000Base-F SFP port card, up to 4 ports
4x 10GBase-F SFP+ port card, up to 4 ports

Content Security

First Time Prevention Capabilities

CPU-level, OS-level and static file analysis
File disarm and reconstruction via Threat Extraction
Average emulation time for unknown files that require full sandbox evaluation is under 100 seconds
Maximal file size for Emulation is 100 MB
Emulation OS Support: Windows XP, 7, 8.1, 10

Applications

Use 8,000+ pre-defined or customize your own applications
Accept, prevent, schedule, and apply traffic-shaping

Data Loss Prevention

Classify 700+ pre-defined data types
End user and data owner incident handling

Content Security (continued)

Dynamic User-based Policy

Integrates with Microsoft AD, LDAP, RADIUS, Cisco pxGrid, Terminal Servers and with 3rd parties via a Web API
Enforce consistent policy for local and remote users on Windows, macOS, Linux, Android and Apple iOS platforms

Network

Network Connectivity

Total physical and virtual (VLAN) interfaces per appliance: 1024/4096 (single gateway/with virtual systems)
802.3ad passive and active link aggregation
Layer 2 (transparent) and Layer 3 (routing) mode

High Availability

Active/Active L2, Active/Passive L2 and L3
Session failover for routing change, device and link failure
ClusterXL or VRRP

IPv6

NAT66, NAT64, NAT46
CoreXL, SecureXL, HA with VRRPv3

Unicast and Multicast Routing (see SK98226)

OSPFv2 and v3, BGP, RIP
Static routes, Multicast routes
Policy-based routing
PIM-SM, PIM-SSM, PIM-DM, IGMP v2, and v3

Physical

Power Requirements

Single Power Supply rating: 150W/300W
AC power input: 100 to 240V (47-63Hz)
Power consumption avg/max: 83W/153W
Maximum thermal output: 522 BTU/hr.

Dimensions

Enclosure: 1RU
Dimensions (WxDxH): 17.2 x 20 x 1.73 in.(438 x 508 x 44mm)
Weight (Base/Plus): 14.9/16.5 lbs. (6.75/7.5 kg)

Environmental Conditions

Operating: 0° to 40°C, humidity 5 to 95%
Storage: –20° to 70°C, humidity 5 to 95%

Certifications

Safety: UL, CB, CE, TUV GS
Emissions: FCC, CE, VCCI, RCM/C-Tick
Environmental: RoHS, WEEE, REACH¹, ISO14001¹

¹. factory certificate

ORDERING QUANTUM 6200 SECURITY GATEWAYS

BASE CONFIGURATION ¹	SKU
6200 Security Gateway Base Configuration, includes 10x 1GbE copper ports, 8 GB RAM, 1 SSD, 1 AC Power Unit, SandBlast (SNBT) Security Subscription Package for 1 Year	CPAP-SG6200-SNBT
6200 Security Gateway Plus Configuration, includes 10x 1GbE copper ports, 4x 1GbE SFP ports, 4x SFP SX transceivers, 16 GB RAM, 1 SSD, 2x AC PSU, Lights-out Management, SandBlast (SNBT) Security Subscription Package for 1 Year	CPAP-SG6200-PLUS-SNBT

¹ Renewal NGFW, NGTP and SandBlast (SNBT) packages are available in the online product catalog.
